Classic Line Specifications
Classic Line – Lift and Slide doors
Schüco ASE 60 Specifications
Download PDF & DWG
If plenty of light and an impressive appearance are important to you, this system is ideally suited for large opening widths with large-scale glass constructions. Thermally insulated aluminum lift-and-slide system ASE 60 with its perfect water tightness, excellent sound reduction and burglar resistance is second to none.
In addition, enjoy the benefits of a new soft-line style that lends a smooth and elegant appearance. You can also choose an appropriate fly screen as a sliding unit. This fits seamlessly into the overall appearance.
Details

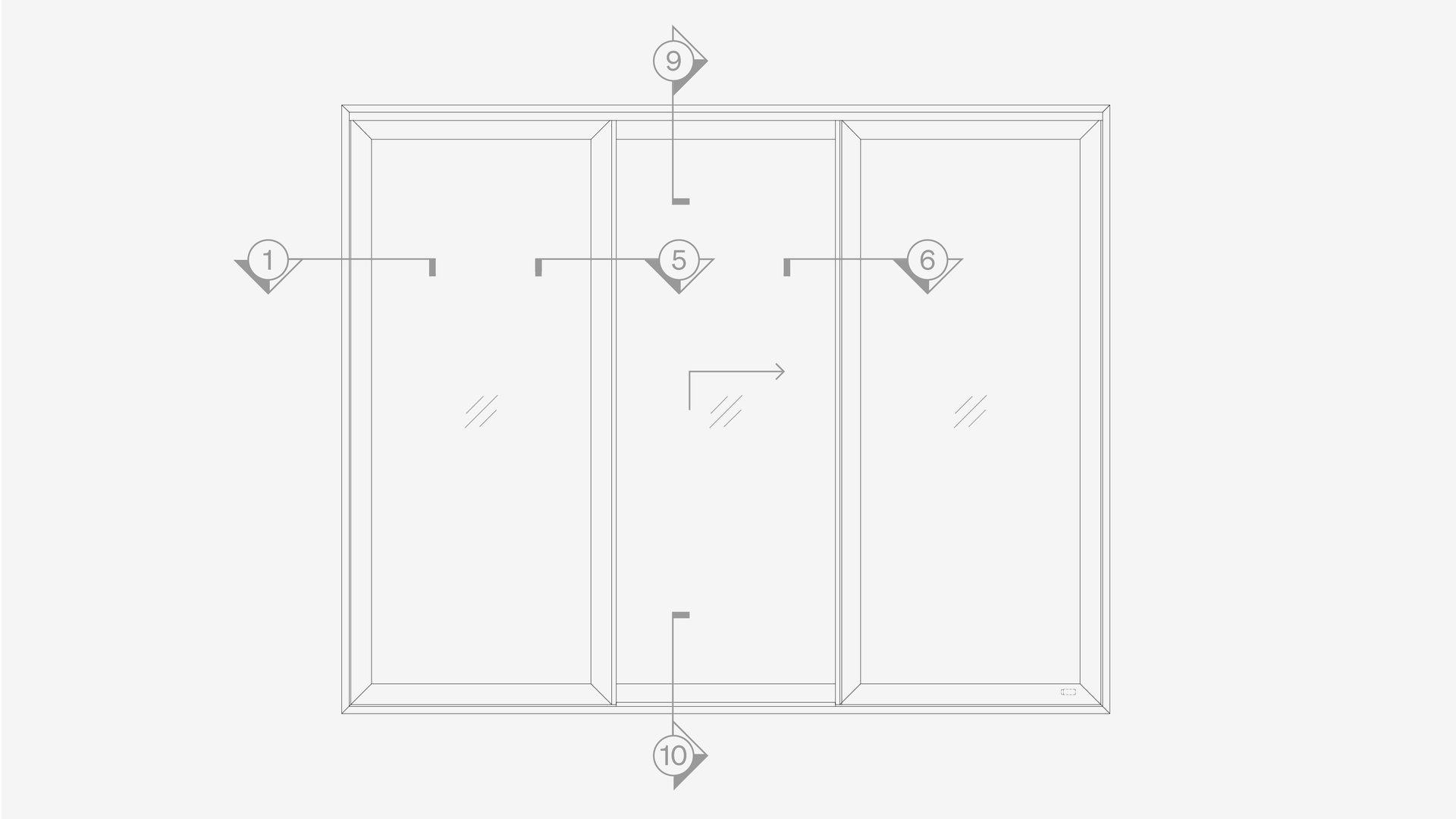

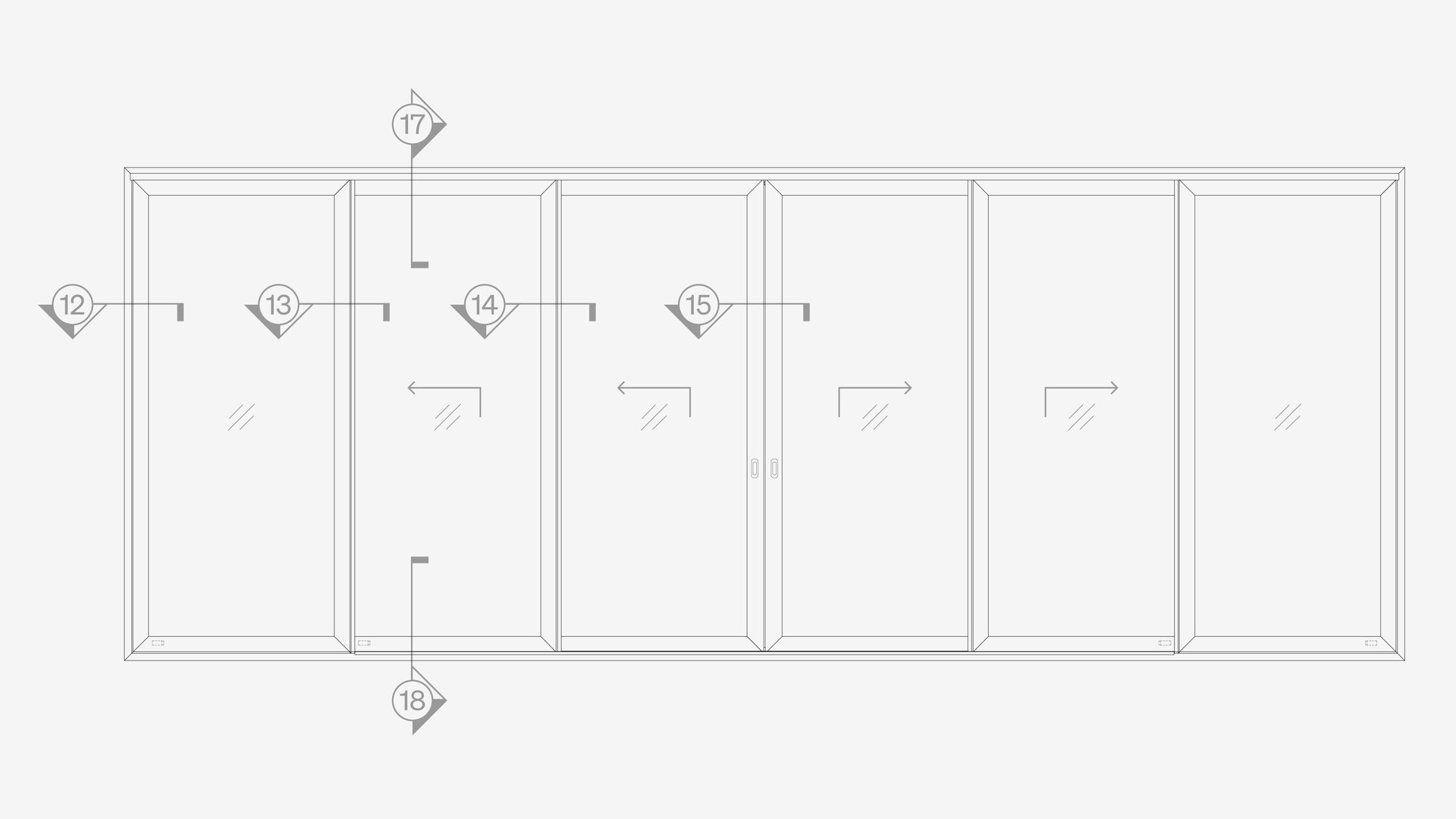

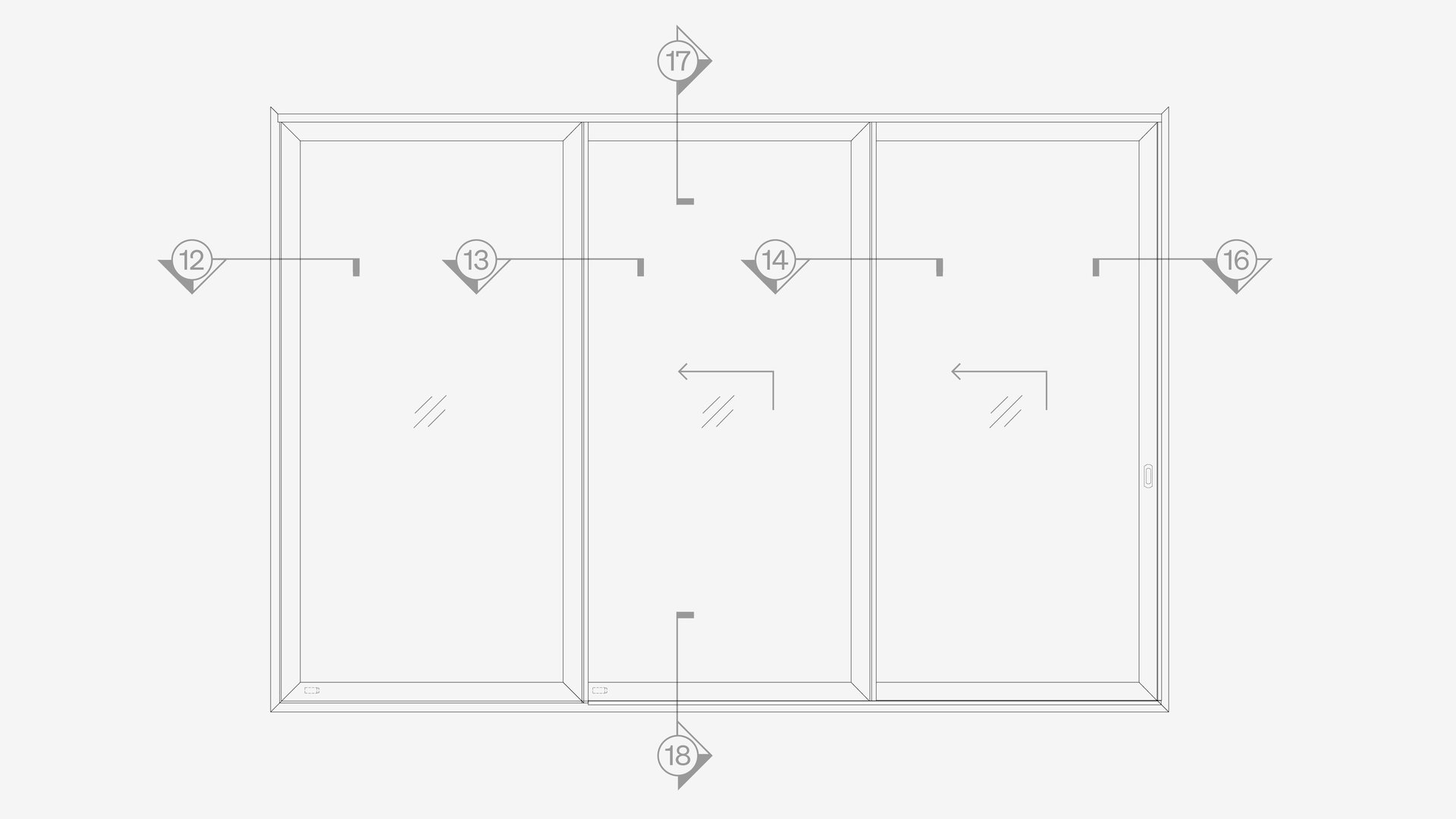

Click tile below to open detail drawings.
Metrics
Minimum Size
18 1/2 in × 21 1/4 in
Maximum Size
11.5 ft x 11.5 ft
Maximum Size
11.5 ft x 11.5 ft
Performance
Air Infiltration @300Pa | 6.27 psf
A3 | 0.4 L/s/m2 | 0.08 cfm/ft2
Water Penetration
- 12 psf (580 Pa) Type 2A/1 (XO) with PVC base profile per K drawing # 1019442
- 8 psf (390 Pa) Type 2D/1 (OXXO) with PVC base profile per B drawing # 73861
- 8 psf (390 Pa) Type 3E/1 (XXO) with PVC base profile per K drawing # 1019442
- 8 psf (390 Pa) Type 2A/1 (XO) zero level ADA threshold & PVC base profile per report #M8362.01
- 5.4 psf (260 Pa) Type 2A/1 (XO) without PVC base profile per K drawing #s 1016519 & 1017555
AAMA Rating
- 0.29 Aluminum 0.40
- 0.29 TGI-M Warm Edge 0.38
- 0.24 TGI-M Warm Edge 0.35
Thermal Example
U-Value
U-Value
Overall U-Value
0.29
Aluminum
0.40
0.29
TGI-M Warm Edge
0.38
0.24
TGI-M Warm Edge
0.35
Certifications
Tested. Certified. Proven.
Trü systems are independently tested to exceed benchmarks for air, water, structural, and thermal performance. Certification ensures enduring quality across every application.
Trü products meet ASTM, AAMA, and NFRC standards—verifying critical performance across all zones. Reliable data supports clear specifications and smooth approvals.
