ASE 60 Lift & Slide Door 4

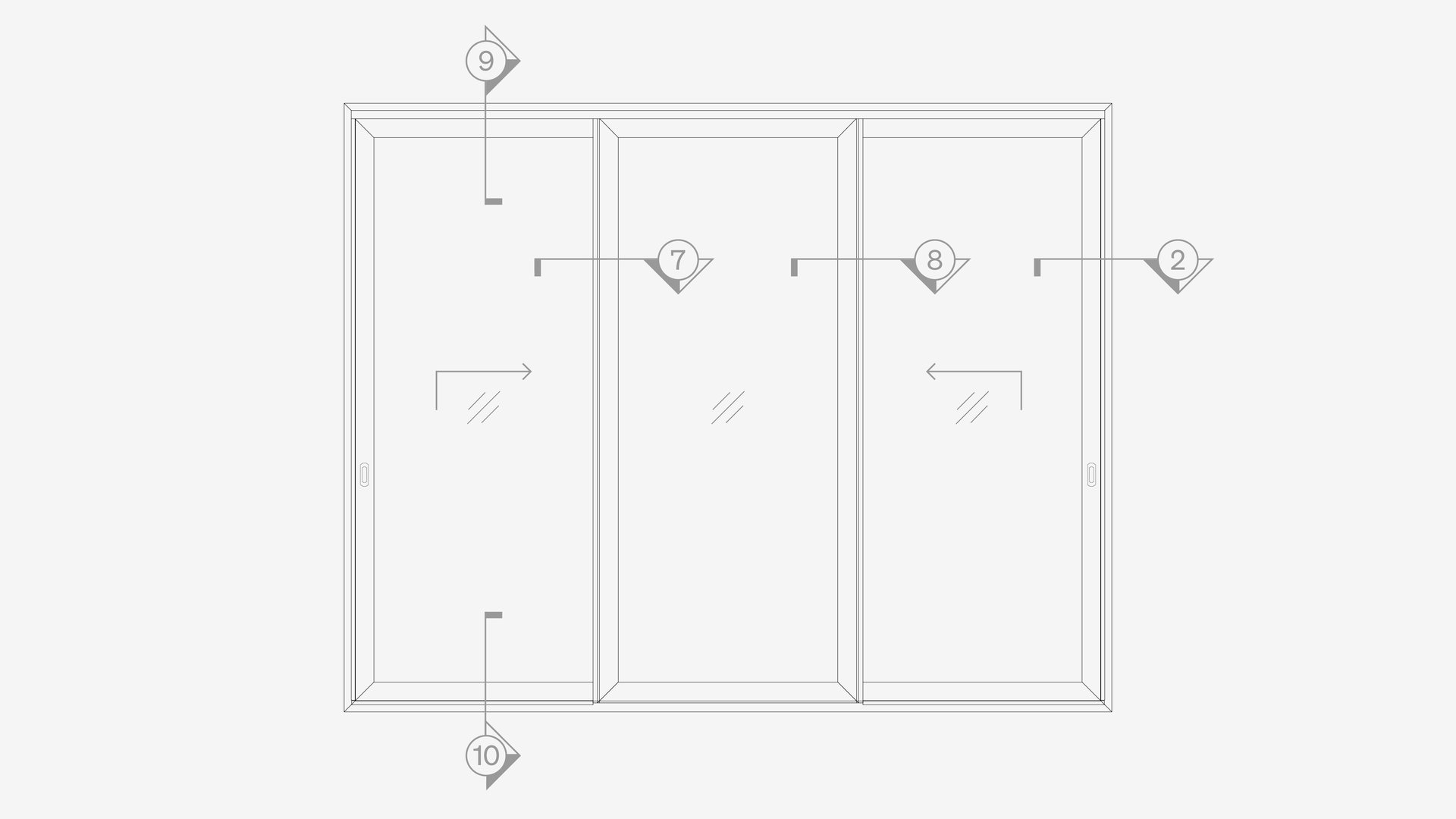

Below are all the details used in this configuration.

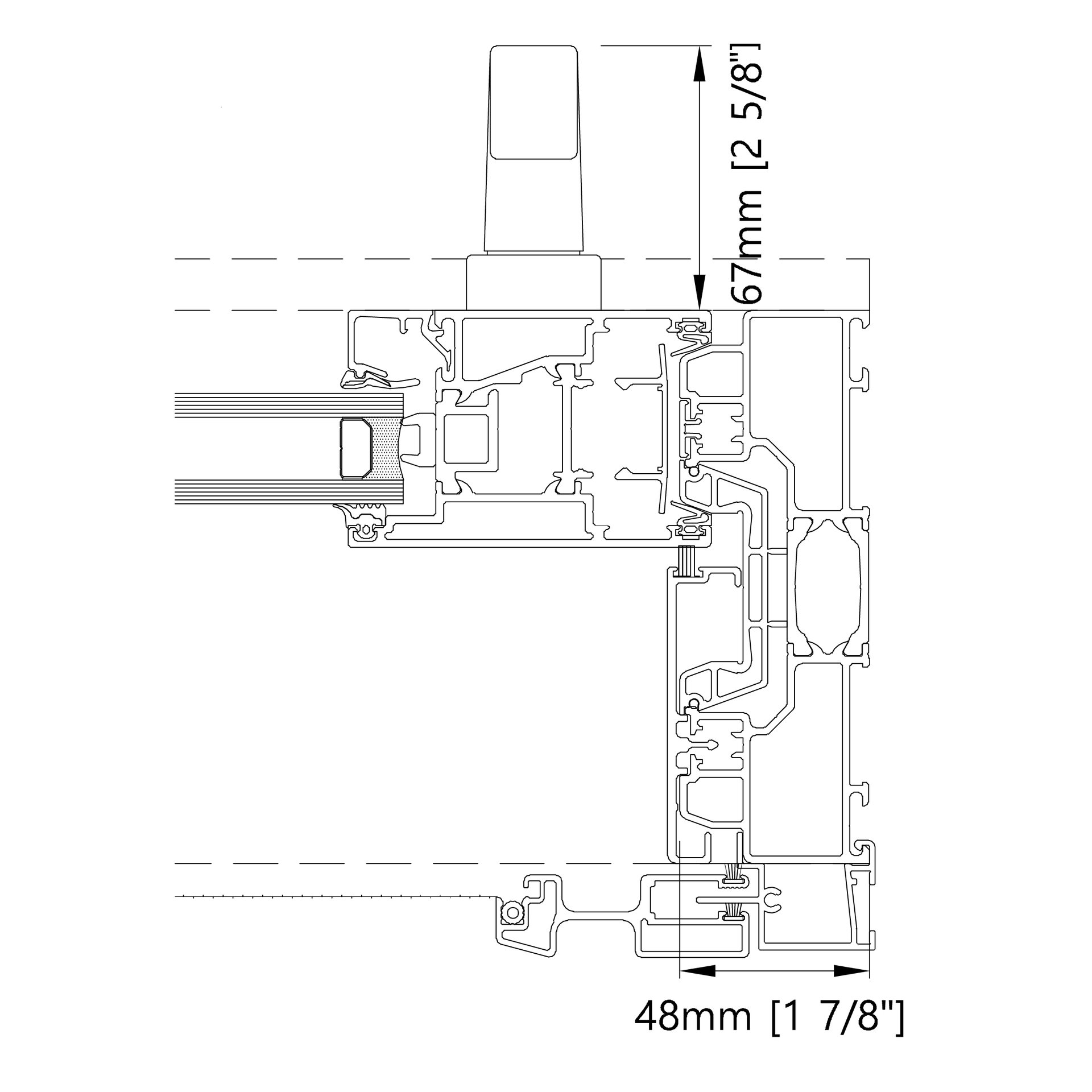

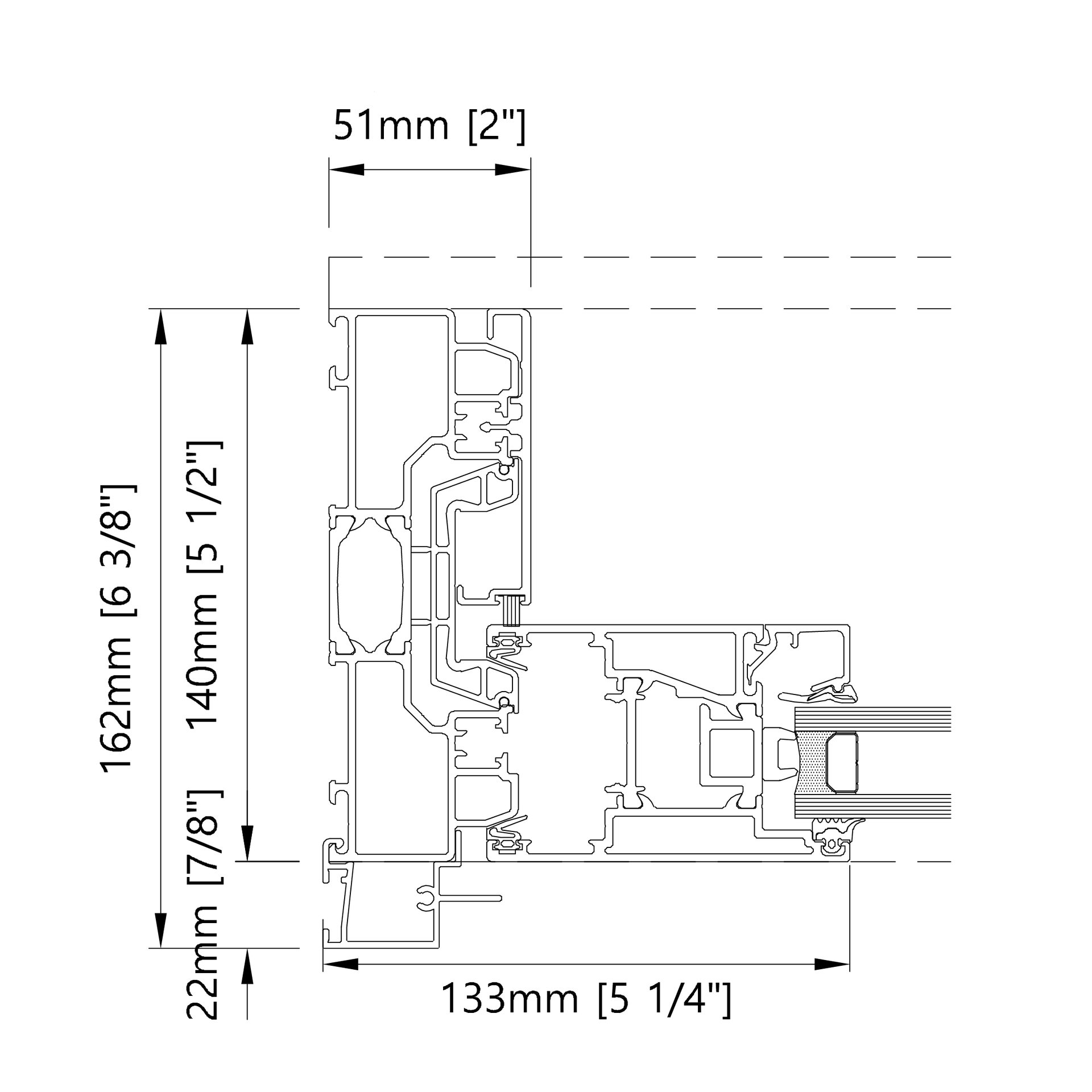

1. Jamb – Horizontal
Two Panel Lift & Slide Door with Fly Screen

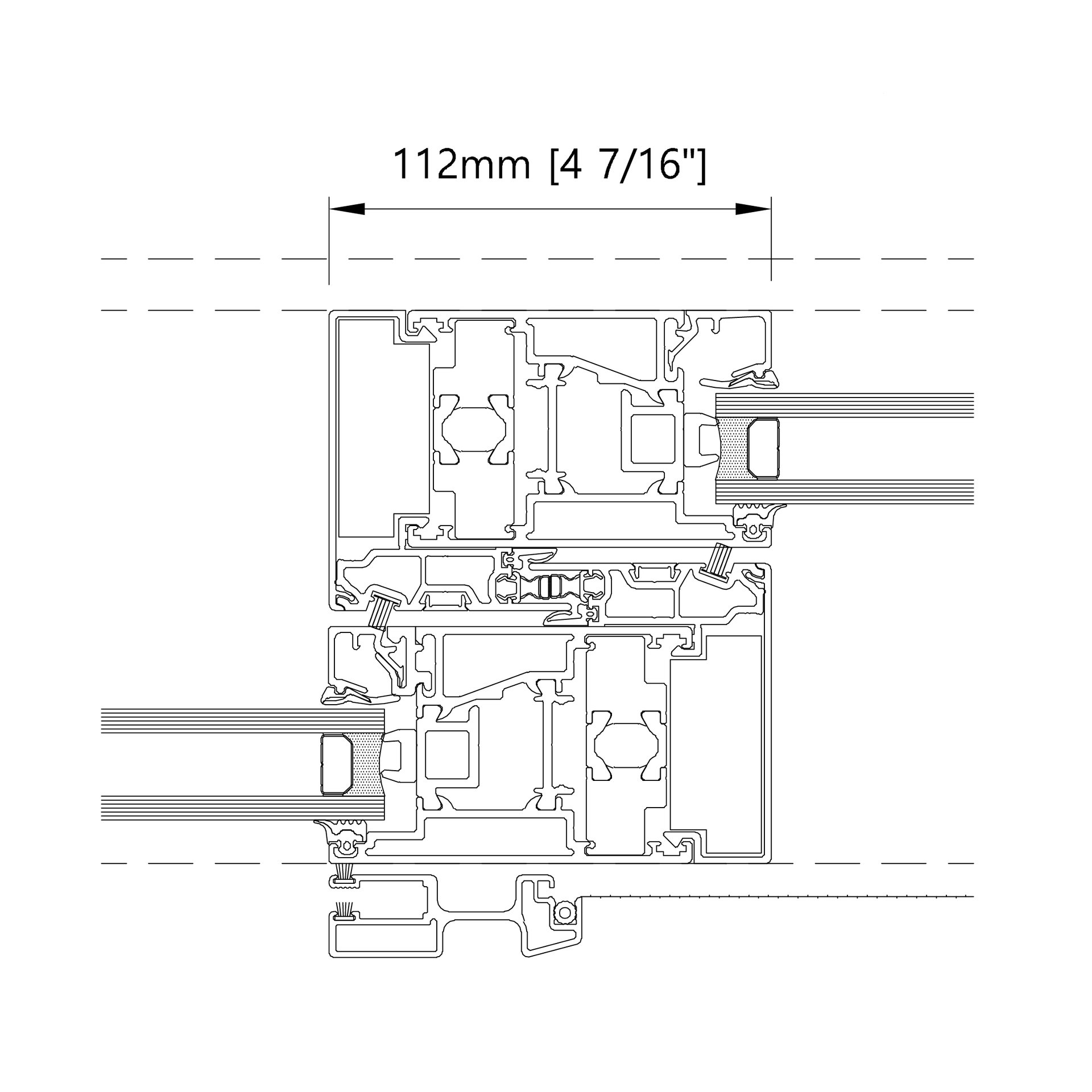

2. Meeting Section – Horizontal
Two Panel Lift & Slide Door with Fly Screen
3. Jamb – Horizontal
Two Panel Lift & Slide Door with Fly Screen
10. Top Vertical
Two/Three/four Panel Lift & Slide Door with Fly Screen

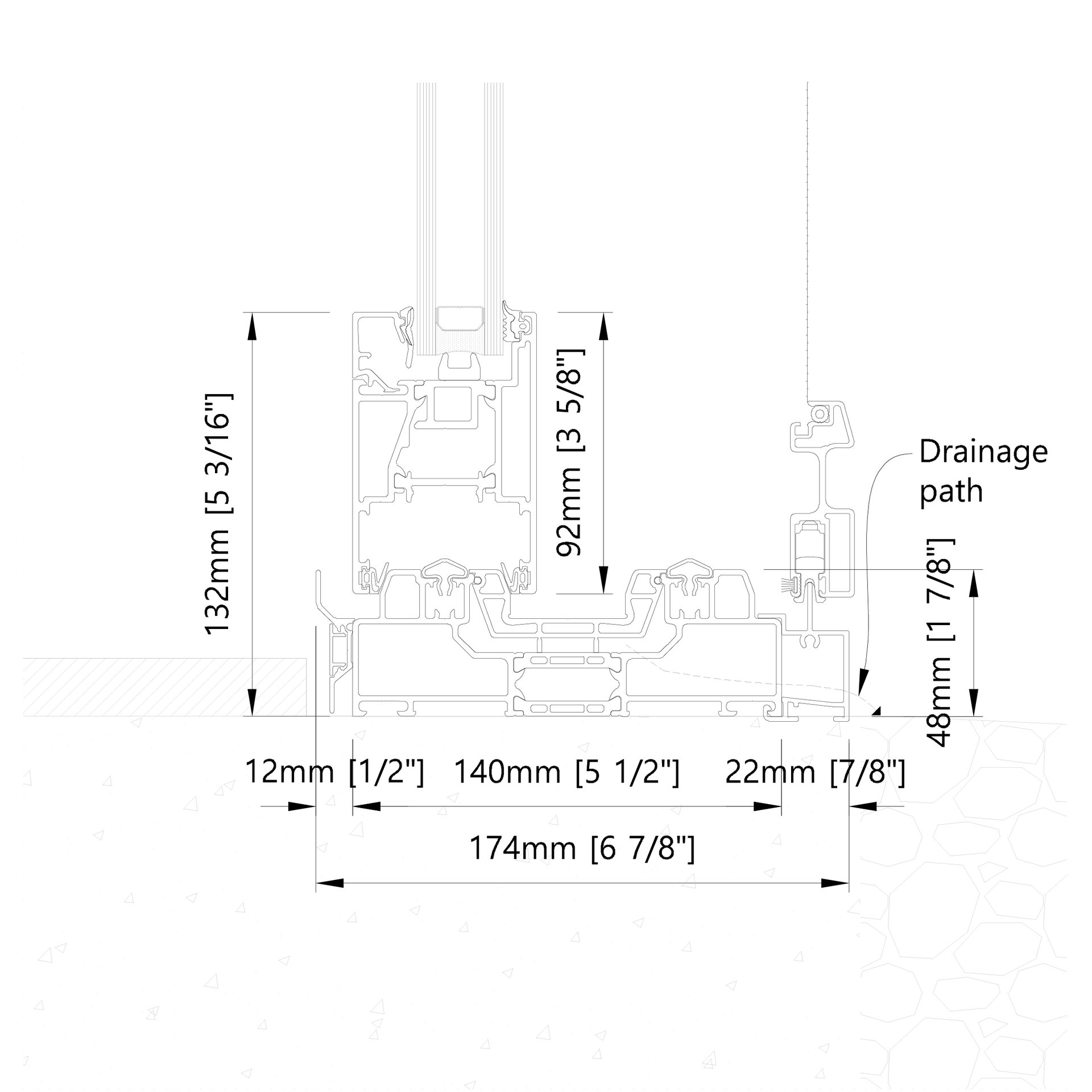

11. Bottom Vertical
Two/Three/four Panel Lift & Slide Door with Fly Screen
