Challenge
Oversized Minimal Sliding Doors with Extremely Narrow Sightlines

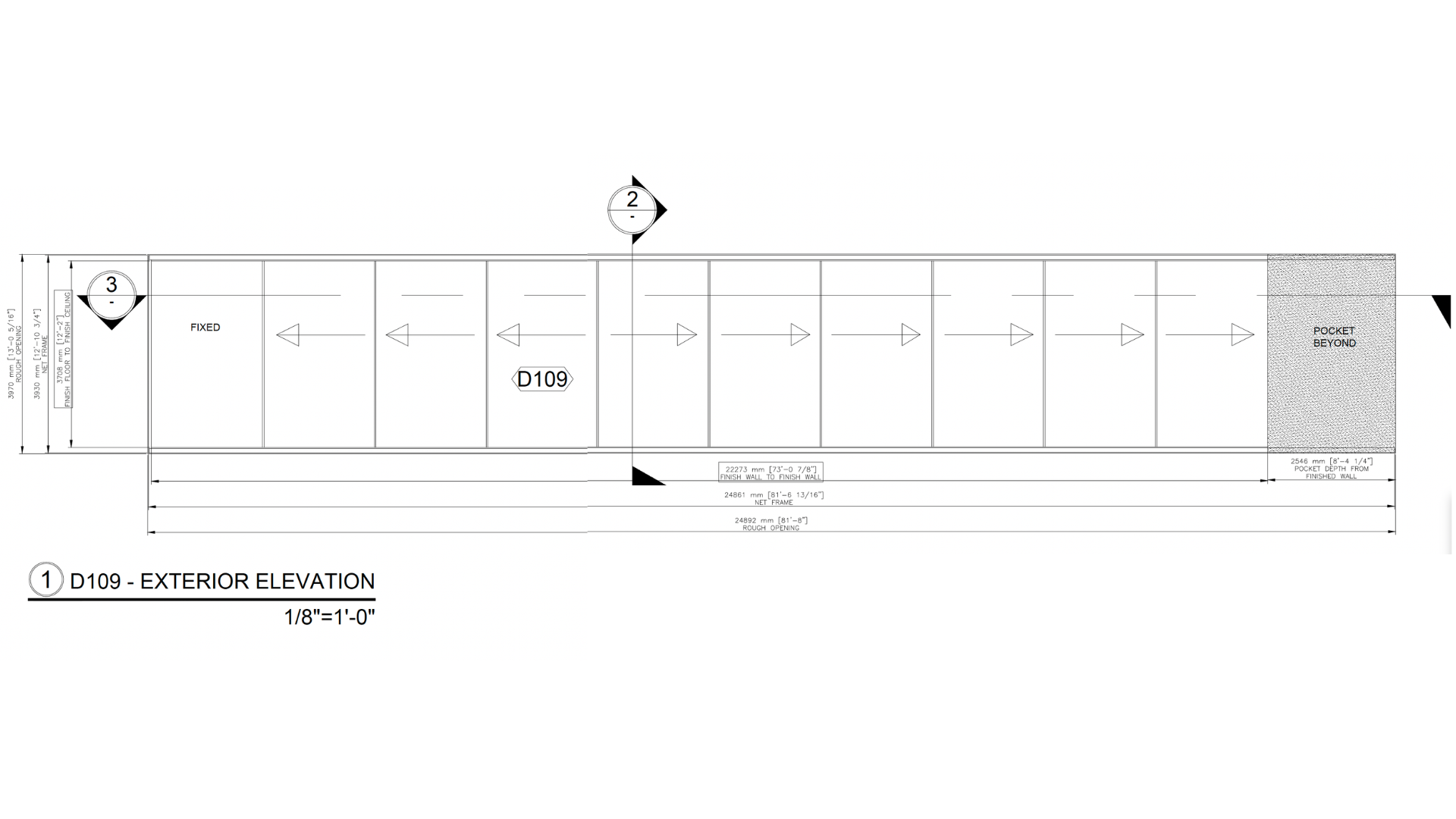

The project required oversized multi-slide door panels reaching approximately 12.5 ft tall while maintaining some of the narrowest in-plane and out-of-plane interlock profiles possible. Standard sliding systems created excessive panel depth and large visual separations between glass panes, conflicting with the architectural vision of a minimal continuous opening.
Project
Trousdale Residence | Challenge One
.png)
Process
01 Developed a custom minimal sliding door system specifically engineered for this project.

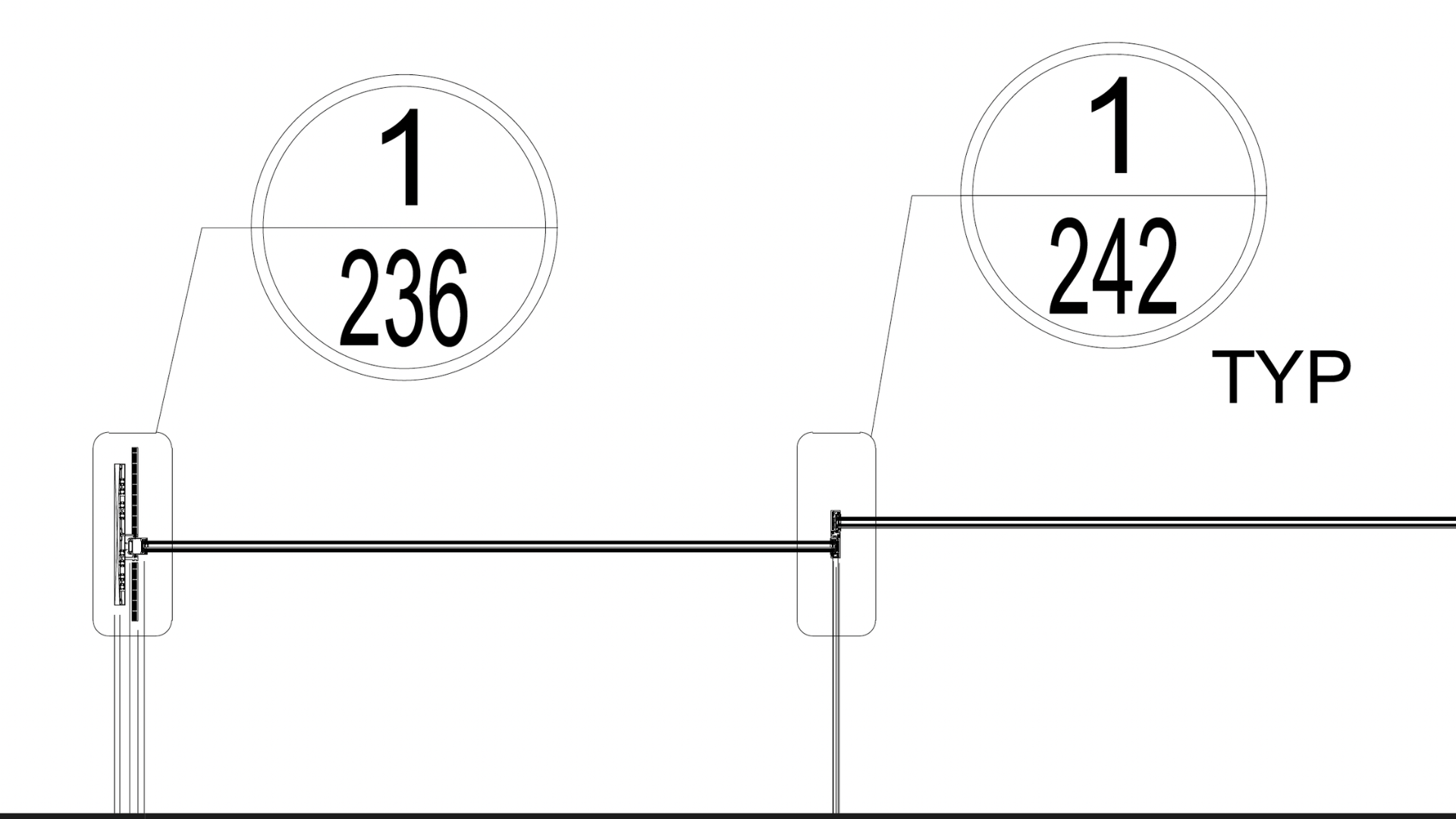

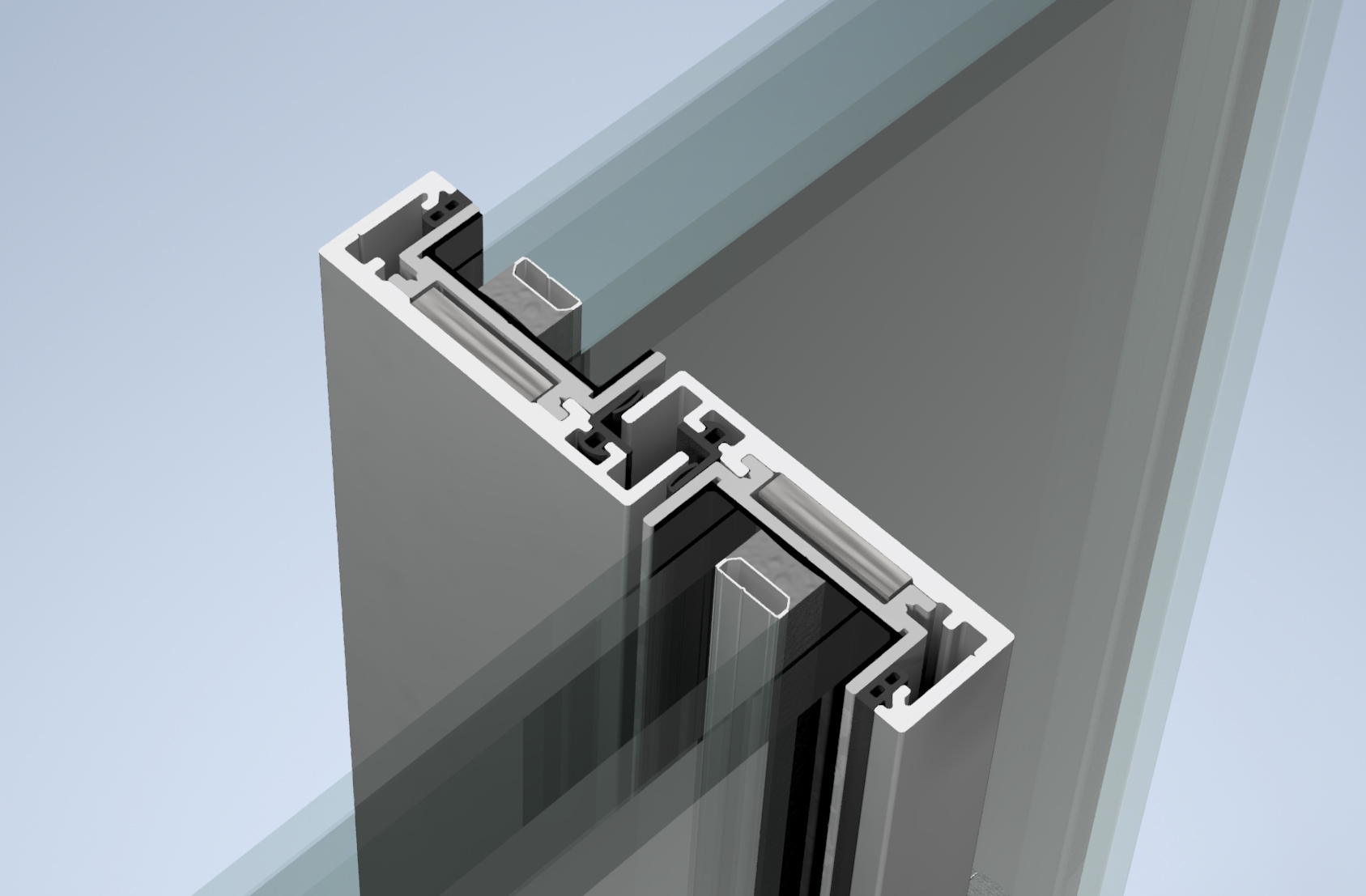

02 Reinforced ultra-narrow aluminum interlock profiles with internal steel bars to increase structural capacity while maintaining minimal dimensions.
.png)
.png)

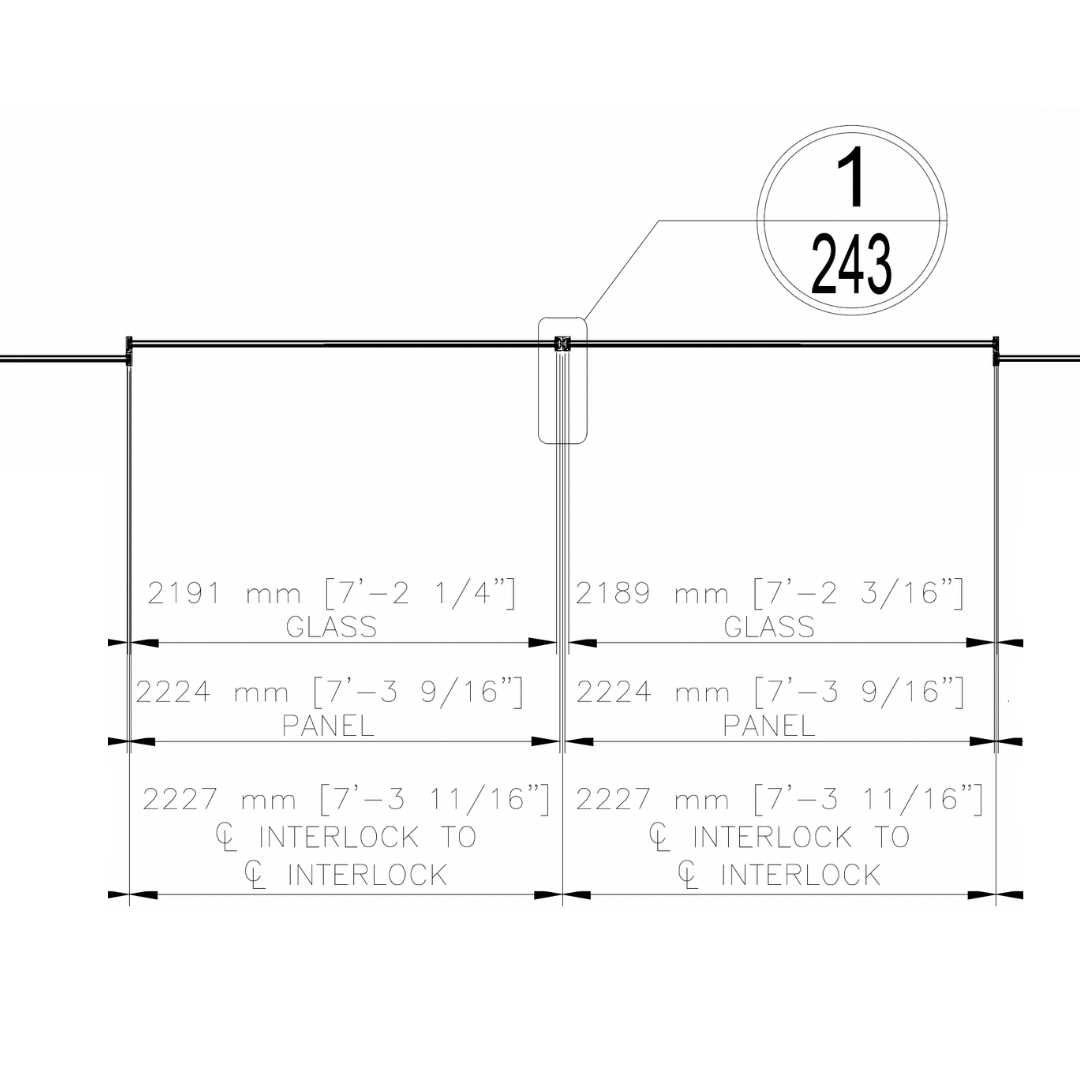

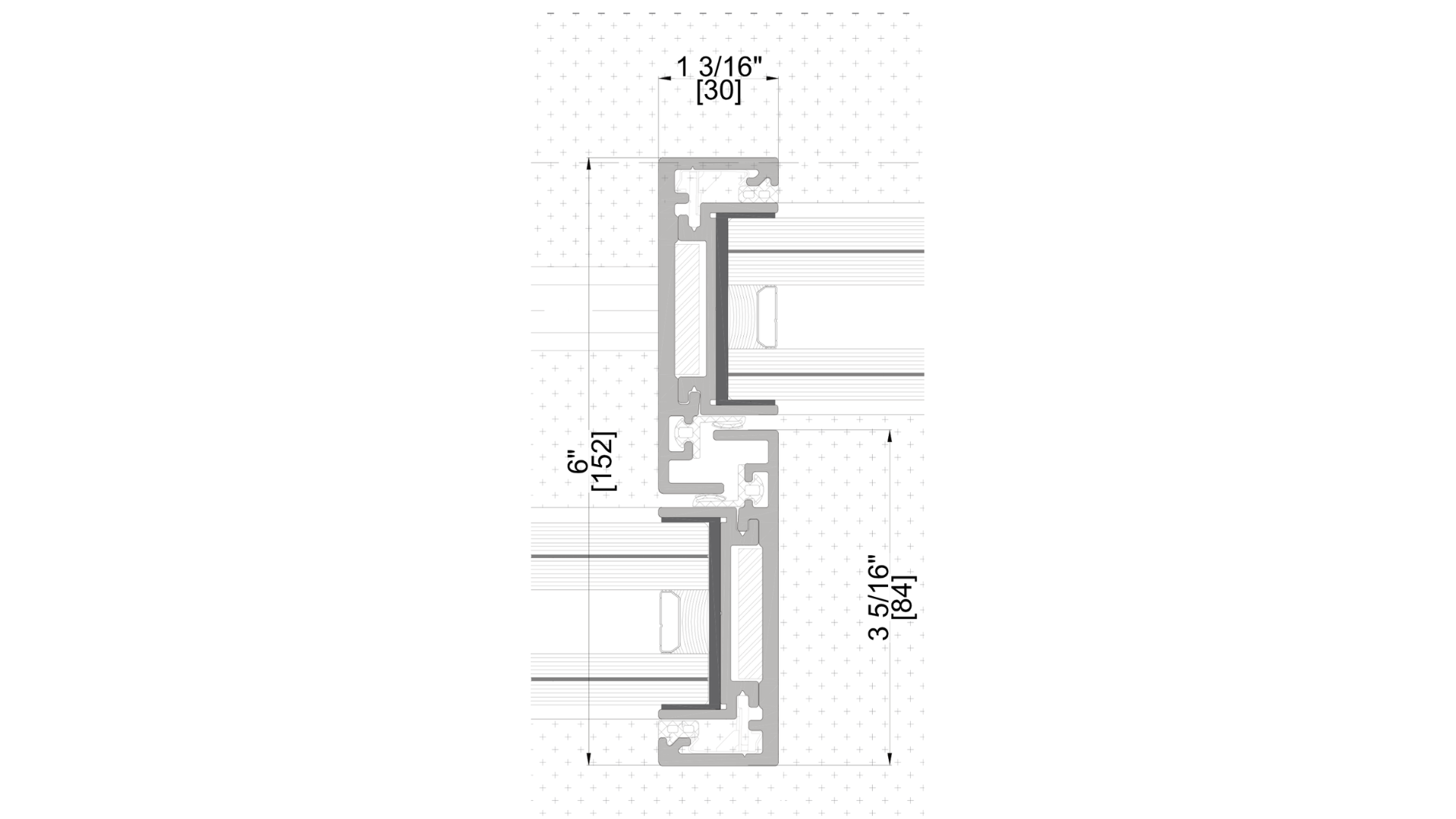

03 Optimized both profile width and depth to reduce visual bulk and minimize out-of-plane projection.
04 Integrated the ADS 75.SI system to achieve high thermal performance while accomodating oversized insulated glass units.
Result

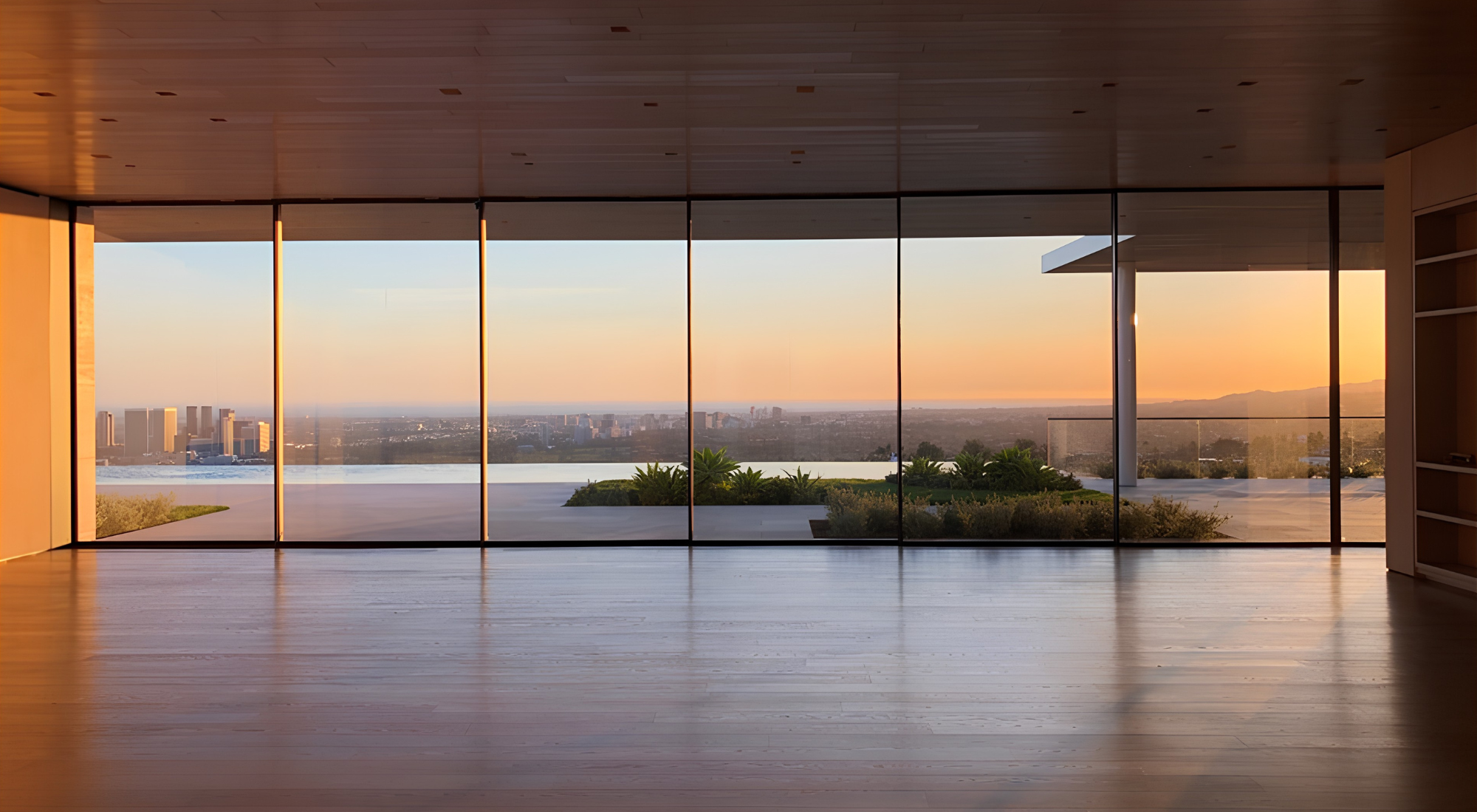

Large-format sliding panels at approximately 12.5 ft tall were successfully delivered with exceptionally narrow sightlines and reduced panel depth. The system achieved a clean, minimal aesthetic while maintaining structural integrity, operability, and thermal performance at unusually large dimensions.
